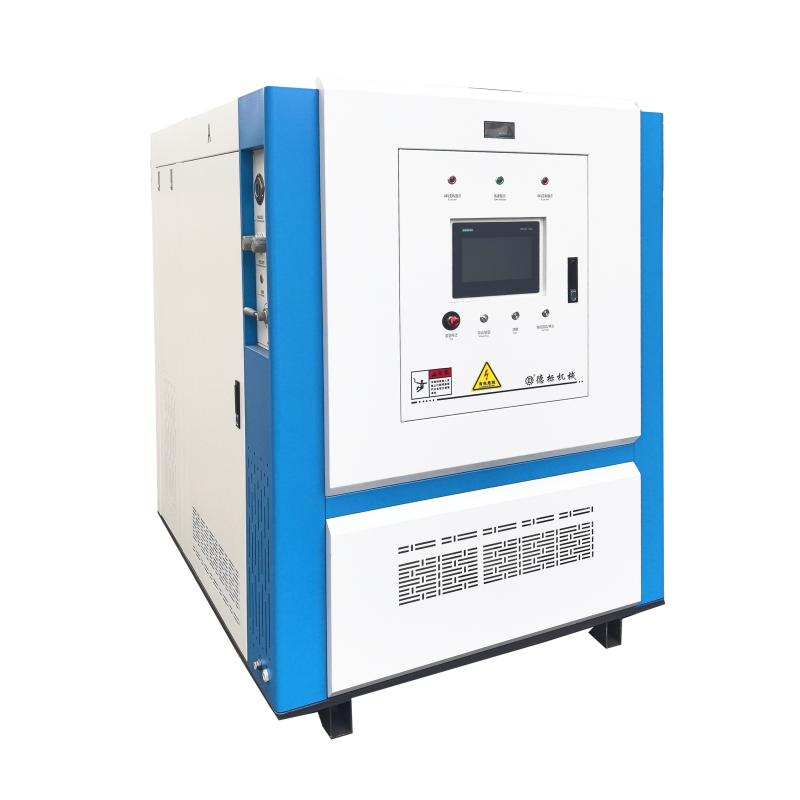

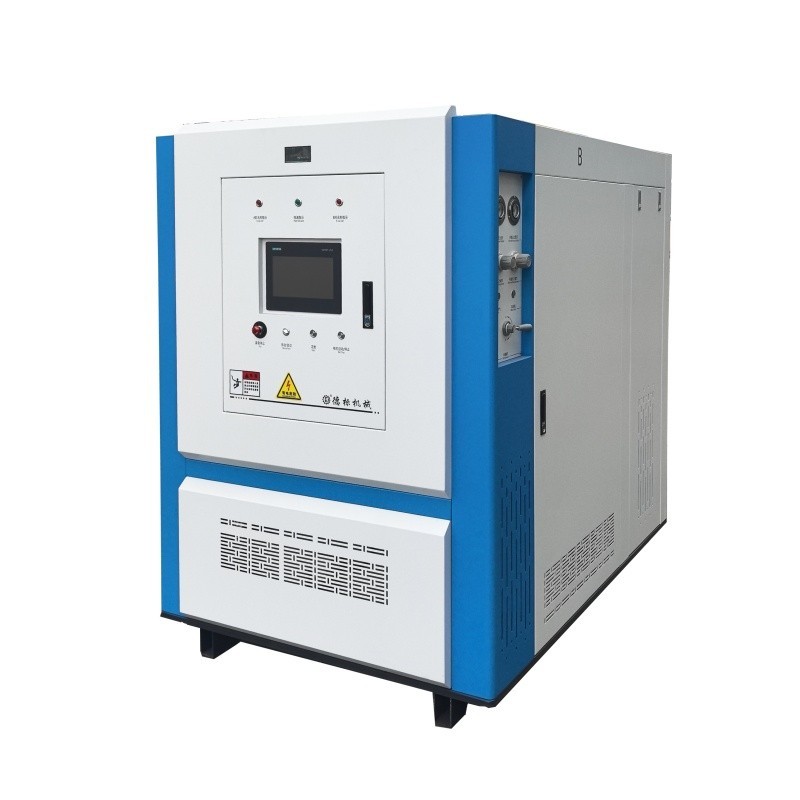

DB B1028 3s series highprecision three color continuous alternating injection feeder
DB B1028 3s series highprecision three color continuous alternating injection feeder
"One-touch visual control, dual-barrel (200kg/20kg) compatibility. Segmented 1:1 injection with 3-color switching. Encoder metering ensures ±0.3% sync error (≤3g/1000g), ideal for versatile production."
- Debiao
- ezhou
- 4-7 DAYS
- 100000 MT
- Information
DB B1028 3s series highprecision three color continuous alternating injection feeder
1. Visual One-Click Parameter Setting and Flexible Adjustment:
The equipment is equipped with a visual interface, enabling one-click parameter setting for easy and quick operation. Pressure and flow rate can be adjusted arbitrarily according to actual needs, satisfying diverse production requirements. The remaining material display function is intuitive and clear, allowing real-time monitoring of raw material usage to avoid waste.
2. Compatibility with Multiple Barrel Sizes for Flexible Production Scenarios:
The equipment is compatible with two barrel sizes: 200kg and 20kg, suitable for both large-scale batch production and small-scale sample testing. This flexibility enables the equipment to easily handle different scales and types of production tasks.
3. Segmented Precision Injection Control for Multi color Switching and Independent Operation:
The equipment adopts a segmented 1: 1 precision injection control unit, with primary and secondary levels capable of independent quantitative injection. It is equipped with two independent metering devices for color paste ratio, supporting arbitrary switching between transparent, A-color, and B-color injections. The three discharge ports operate independently without interference, ensuring production efficiency and product quality.
4. High-Precision Synchronous Output and Encoder Metering for Accurate Ratio Control:
The equipment utilizes an encoder metering system to achieve high-precision synchronous output. The metering error can be controlled within ± 0. 3%, with an error not exceeding 3g for a single set quantity of 1000g. This high precision ensures the accuracy and consistency of product ratios.
Suitable Product
Technical Parameter
DESCRIPTION | unit | Parameter |
Maximumstoragecapacityofinjected plunger | G | 300-2000 |
Injection rate | G/S | 50 |
Maximum glue output(A+B) | G/min | 1800 |
Disk cylinder stroke | MM | 1100 |
Pumping stroke | MM | 70 |
Cylinder Diameter | MM | 90 |
Size of raw material barrel | L | 20/200 |
Maximumfeeding pressure(hydraulic) | Mpa | 14 |
Mixed ratio column | A: B | 1: 1 |
Maximum feeding pressure | Mpa | 20 |
Using voltage | V | 380 |
A. B(Φ) A. Size of materialpipe B ( Φ) | MM | 20（3/4） |
Minimum air pressure | Kgf/cm2 | 5.5 |
Equipment size MM 1500(L)x 1050(W)x 1900/2700(H)
