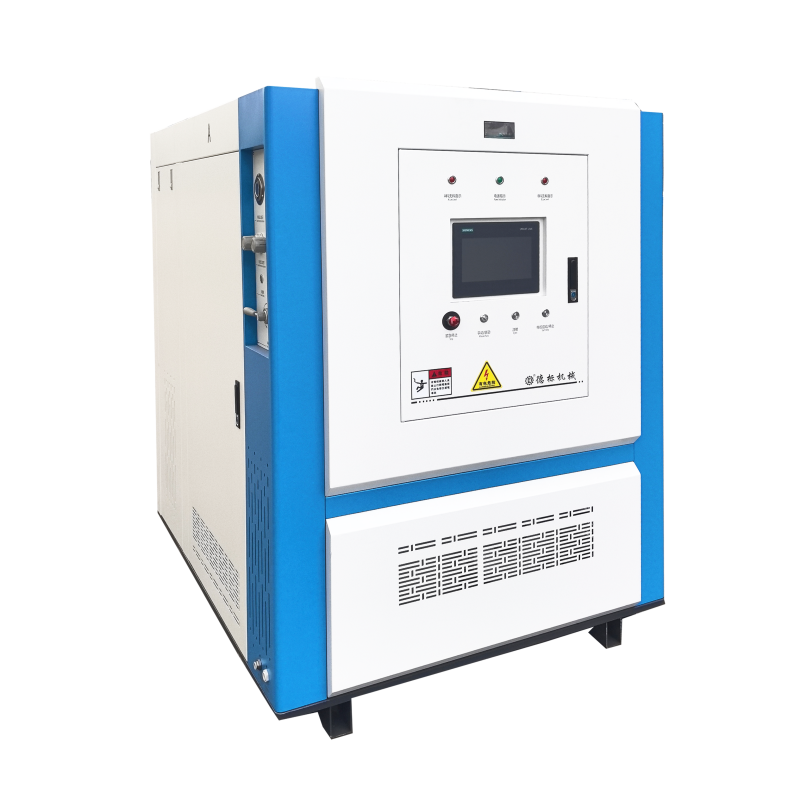

DB B1028 series highprecision continuous alternating injection feeder
DBB1028 series highprecision continuous alternating injection feeder
DBB1028 series high-precision feeder with patented volumetric metering (0-56MPa pressure, 3M cP viscosity)13. 1:1 mixing ratio (<0.1% error), ±0.3% dosing accuracy34, 304 stainless steel for corrosion/heat resistance47. Pre-cleaned with cooling jacket for efficiency35.
- Debiao
- ezhou
- 4-7 DAYS
- 100000 MT
- Information
DBB1028 series highprecision continuous alternating injection feeder
1. Advanced injection Technology: first-in, first-out patented technology with continuous volumetric metering injection for stability and reliability.
2. High-Pressure and Wide Viscosity Adaptability: injection pressure ranges from 0 to 56MPaaccommodating viscosities up to 3 million cP for diverse materials..
3. Precise Mixing and Residual Material Management: 1:1 mixing ratio with an error margin of less than 0.1%Encoder metering ensures accuracywithin +0.3% (e.g., +3g for a 1000gsetting).
4. High-Quality Materials: Core components are made of stainless steel (304), offering corrosion and high.temperatureresistance.
5. Efficient Cleaning and User-friendly Operation: Factory cleaning ensures no residue. Equipped with acoolina wateriacketfor convenient operation.

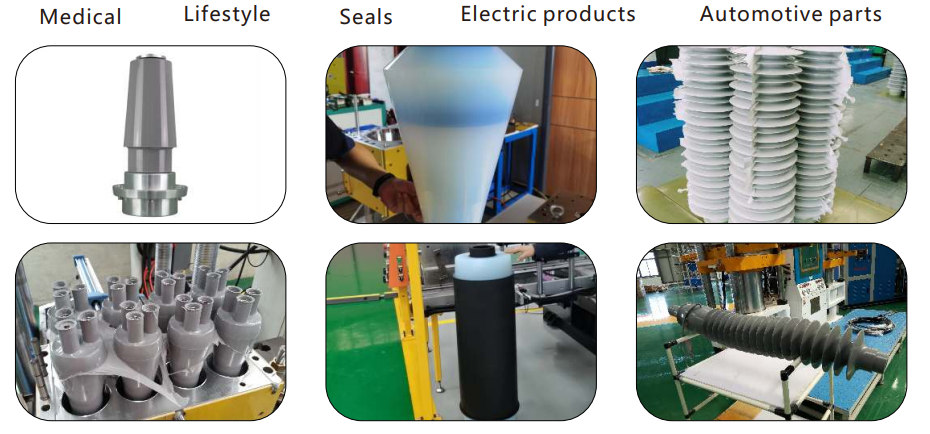

Suitable Product
Technical Parameter
| Project | Unit | Parameter |
|---|---|---|
| Injection Rate | g/s | 50 |
| Maximum Glue Output (A+B) | g/min | 1800 |
| Disk Cylinder Stroke | mm | 1100 |
| Pumping Stroke | mm | 110 |
| Cylinder Diameter | mm | Φ100 |
| Size of Raw Material Barrel | L | 20（小桶） / 200（大桶） |
| Maximum Feeding Pressure (Hydraulic) | MPa | 14 |
| Mixed Ratio | Column | A:B = 1:1 |
| Maximum Feeding Pressure | MPa | 60 |
| Using Voltage | V | 380 |
| Size of A & B Material Pipes | mm | A: Φ20 (3/4")，B: Φ20 (3/4") |
| Minimum Air Pressure | kgf/cm² | 5.5 |
| Equipment Size | mm | 1250 × 1660 × 1900 |
| Motor Horsepower | kW | 5.5 |
| Machine Weight (approx.) | (ton) | 1.5 |
