DB FPB1026fx series 2 to 15kg high-dose continuous injection feeder
DB FPB1026fx series 2 to 15kg high-dose continuous injection feeder
Patented metering injection (±0.1% ratio accuracy), 15kg/min speed, handles 4M mpas viscosity, Siemens HMI + integrated calendering/vulcanizing/slicing line for complex silicone processes.
- Debiao
- ezhou
- 4-7 DAYS
- 100000 MT
- Information
DB FPB1026fx series 2 to 15kg high-dose continuous injection feeder
1. Innovative injection technology: Using patented first in, first out process of raw materials, continuous volume metering injection is achieved, combined with pneumatic feeding and hydraulic injection, providing high-pressure and high flow injection capabilities to meet complex injection needs.
2. Precise mixing and measurement: The mixing ratio system reaches 1: 1, the AB component ratio error is less than 0.1%, and the synchronous output accuracy error is controlled within ± 0. 3% to ensure stable product quality.
3. Efficient injection performance: The maximum injection speed is 15kg/min (depending on the viscosity of the material), and the total weight of the discharge during equipment debugging is controlled within the range of 2-3 kilograms, reducing material waste and improving production efficiency.
4. Adaptability to high viscosity materials: Suitable for a variety of high viscosity materials, with a maximum usable viscosity of 4000000mpas, expanding the application range of the equipment.
5. Intelligent operation and display: Equipped with Siemens operating system computer and touch screen panel, the operation is simple and intuitive, with added residual material display function, real-time monitoring of material usage, and improved production efficiency.

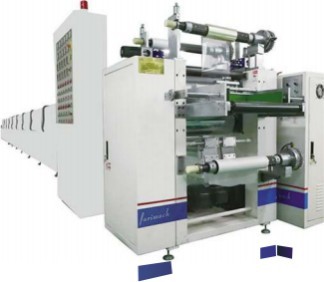

6. Multi functional production line configuration: including calendering machines, vulcanization lines, multifunctional slicing machines, etc., to meet various needs for the rolling and coating production of liquid and semi-solid thermal conductive silicone products. Among them, the unique combination design of rolling and coating, multiple heating options, excellent insulation design, and multifunctional slice r are all designed to meet customers ' different process needs, greatly saving space and costs.
These core selling points highlight the innovation, precision, efficiency, adaptability, intelligence, and multifunctionality of the equipment, which helps attract the attention of potential customers and enhance market competitiveness.
Purpose
Technical Parameter
DESCRIPTION | unit | Parameter |
Injection rate | G/S | 160 |
Maximum glue output(A+B) | G/min | 10000 |
Disk cylinder stroke | mm | 1030 |
Pumping stroke | mm | 无 |
Cylinder Diameter | mm | Φ100 |
Small raw material barrel size | mm | 280 |
混合比列 Mixed ratio column | A: B | 1: 1 |
Maximum feeding pressure | Mpa | 26 |
Using voltage | V | 380 |
A. Size of materialpipe B ( Φ) | MM | dφ19 |
Minimum air pressure | Kgf/cm2 | 4 |
Equipment size MM 1400*2025*1800
