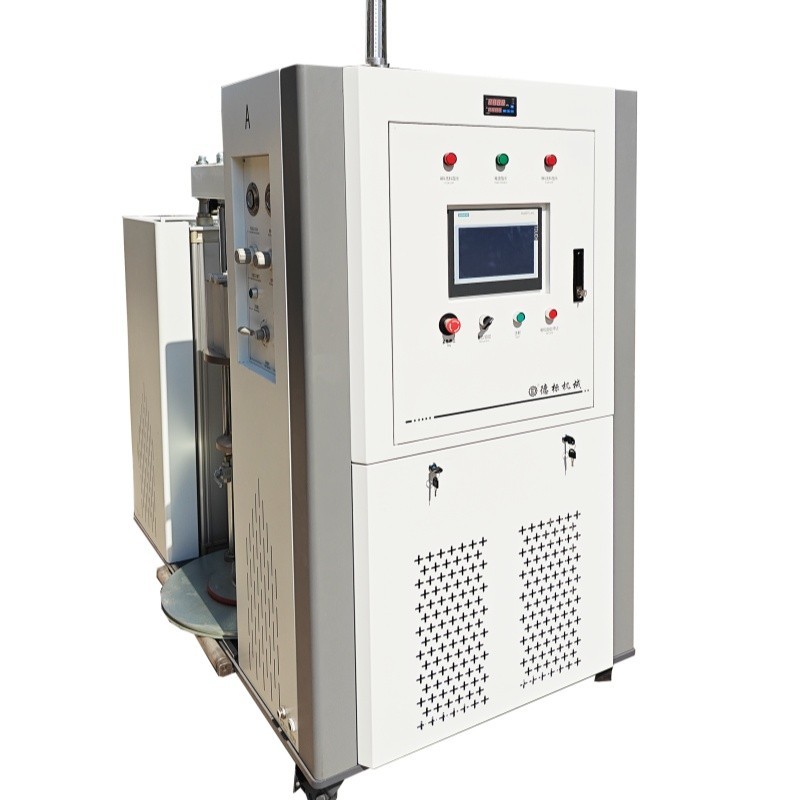

DBBLD1026 series high-precision 600G quantitative feeder
DBBLD1026 series high-precision 600G quantitative feeder
Precision Injection System
Bidirectional metering (≤600g), 0.1% error, 2L/min. Handles 4M mPa·s. Programmable 3+1 segments (10-3000CC/min). Quick-change, 20/200L barrels. A/B alarms. Cuts waste 15%.
- Debiao
- ezhou
- 4-7 DAYS
- 100000 MT
- Information
DBBLD1026 series high-precision 600G quantitative feeder
1. High-Precision Injection Control: Utilizing a bidirectional synchronous metering cylinder for injection, with a volumetric measurement capacity of approximately 600g or less. The feeding injection pressure ranges from 0 to 56 MPa, and the mixing ratio system is 1: 1, with a proportional error of less than 0.1%. The maximum injection speed is 2 L/ min, and the synchronous output accuracy error is ± 0. 3%.
2. High-Viscosity Material Adaptability: The maximum usable viscosity of the adhesive material reaches 4,000,000 mpas. A new dual-input piping device for materials A and B has been added, enabling dual-phase output and centralized mixing injection at the end. The piping is easy to clean and storable.
3. Flexible Glue Injection Programming: The glue injection speed, pressure, and injection volume can be set in segments ( up to 3 + 1 segments), with an adjustable glue injection speed ranging from 10 to 3000 CC/ minute, to meet various process requirements.
4. Efficient Material Transportation and Mixing: The equipment employs a hydraulic pump driven by a motor. The conveying pipes for materials A and B have specifications of DN12 or DN16, and the mixed pipeline is DN16. It is equipped with a one-to-two glue injection output connector, and the glue injection port and mold are connected via quick-change connectors, accommodating the installation of standard adhesive material raw material barrels of 20/200L.
5.. Convenient.Operation and.intelligent. Monitoring: The installation area for raw material barrels A and. Buses *rollers for easy*materlal.change operatlons. There"ls an *alarm for materlal shortage in*A/B, ensuring thecontinuity and stabllityof.the productlon"process.

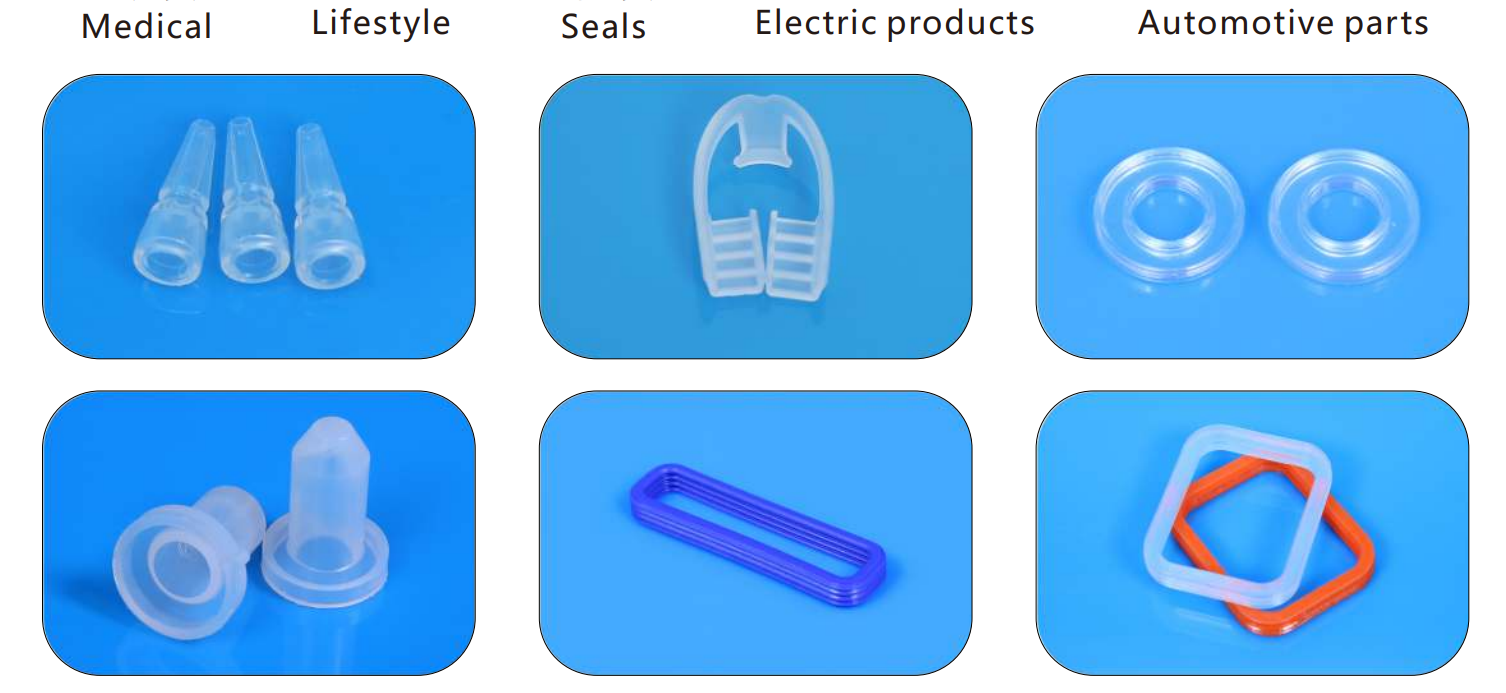

Suitable Product
Technical Parameter
| Project | Unit | Parameter |
|---|---|---|
| Maximum Storage Capacity of Injected Plunger | g | 300–2000 |
| Injection Rate | g/s | 30 |
| Maximum Glue Output (A+B) | g/min | 1800 |
| Disk Cylinder Stroke | mm | 1100 |
| Pumping Stroke | mm | 100 |
| Cylinder Diameter | mm | Φ100 |
| Size of Raw Material Barrel | L | 20 / 200（小桶 / 大桶） |
| Maximum Feeding Pressure (Hydraulic) | MPa | 14 |
| Mixed Ratio | Column | A:B = 1:1 |
| Maximum Feeding Pressure | MPa | 60 |
| Using Voltage | V | 380 |
| Size of A & B Material Pipes | mm | A: Φ20 (3/4")，B: Φ20 (3/4") |
| Minimum Air Pressure | kgf/cm² | 5.5 |
| Equipment Size | mm | 1700 × 980 × 1900 |
| Motor Horsepower | kW | 5.5 |
