DB WS LSR series fully automatic horizontal liquid injection molding machine
DB WS LSR series fully automatic horizontal liquid injection molding machine
High-precision LSR injection with fast cycles. Micro-tolerance molding for complex parts. Low scrap rate & modular maintenance. Energy-saving design with material recycling.
- Debiao
- ezhou
- 4-7 DAYS
- 100000 MT
- Information

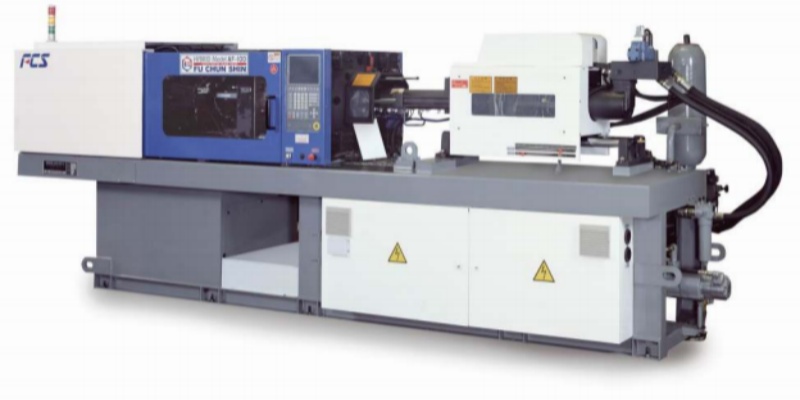

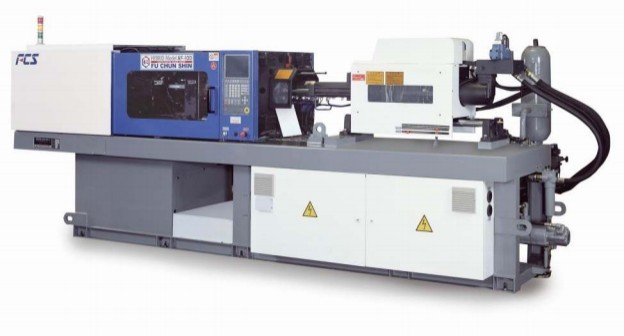

DB WS LSR series fully automatic horizontal liquid injection molding machine
01. Equipped with a high-precision injection system, it can accurately control the injection volume and speed of liquid silicone gel, ensuring product size accuracy and consistency, and meeting the requirements of high - precision products.
02. Advanced injection molding machines provide fast cycle times, enabling the completion of a production cycle in a relatively short amount of time, thereby achieving mass production and meeting market demand.
03. Capable of producing high-precision and consistent silicone parts with extremely precise processes, allowing manufacturers to produce complex shapes and intricate details with strict tolerances.
04. Due to the high precision and stability of the equipment, the quality of the produced products is stable and the scrap rate is low, which helps to reduce production costs.
05. Modular design facilitates daily maintenance and upkeep, improving the service life of the equipment.
06. Liquid silicone injection molding is highly efficient in material use, generating minimal waste. Excess materials can usually be recycled and reused, contributing to sustainable manufacturing practices. 07. The model adopts energy-saving design, such as servo motors, which can effectively reduce energy consumption.

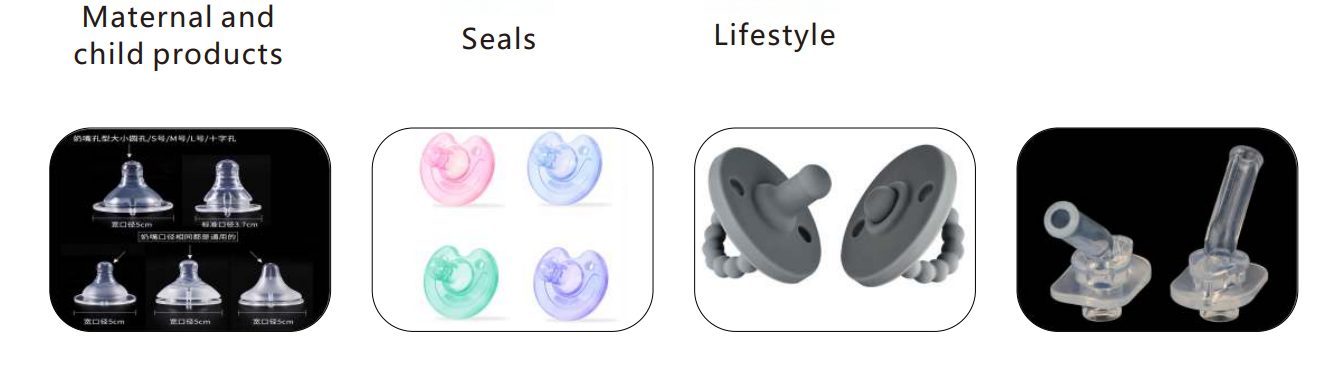

Suitable Product
Technical Parameter
DESCRIPTION | DB-WS-90 | DB-WS-120 | DB-WS-160 | DB-WS-200 | |
Injection System | |||||
Screw Diameter | mm | Φ35 Φ40 | Φ55 Φ50 | Φ50 Φ55 | Φ55 Φ60 |
Injection Pressure | kgf/cm² | 1653 1371 | 1347 1093 | 1435 1187 | 1187 996 |
Theoretical shot volume | cm³ | 192 251 | 350 431 |
431 521 | 521 620 |
Injection rate | cm³/sec | 51 74 | 103 127 | 153 182 | |
127 153 | |||||
Clamping System | |||||
Clamping force | ton | 90 | 120 |
460 | 200 |
Opening stroke | mm | 310 | 360 | 452 | |
Min. Mold | mm | 125 | 142 | 152 | 225 |
open Daylight | mm | 665 | 738 | 880 | 960 |
Mould size | mm | 368*368 | 428*428 | 472*472 | 530*530 |
Ejector force | ton | 3 | 3.5 | 4 | 5 |
Ejector Stroke | mm | 105 | 105 |
130 | 140 |
Maximum system pressure | kg/cm² | 140 | 140 | 140 | |
Fuel tank capacity | L | 180 | 200 | 140 | 340 |
Other | 260 | ||||
Motor horsepower | kw | 7.5 | 11 | 18.5 | |
Di mention Of Machine | m | 3.9*1. 1*1.6 | 4. 1*1.2*1.7 | 4.6*1. 3*1.8 | 5. 5*1.4*2 |
Weight | ton | 3 | 3.3 | 4.8 | 6.2 |
