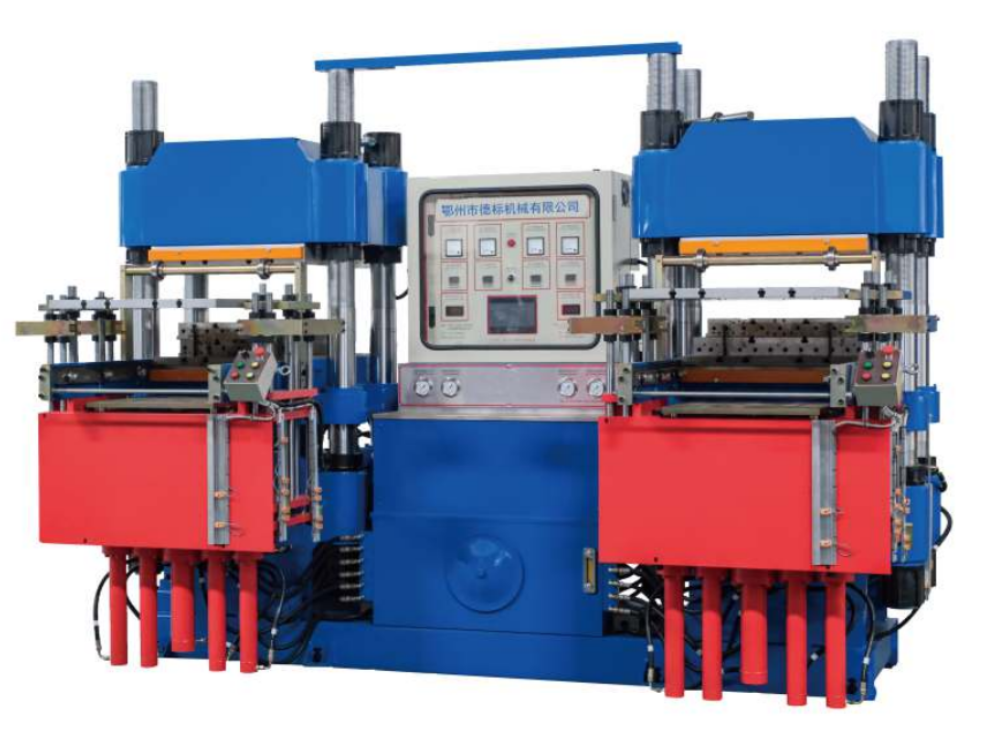

DBPBHF series flat vulcanizing machine
db-pb-hf-series-flat-vulcanizing-machine
Wide range pressure adaptation for all materials (0.8-24MPa covering rubber/silicone and other full
material systems to meet complex processes); Precise temperature control to eliminate defects (PID
temperature control+imported heating plate, temperature fluctuation ≤ ± 1 ℃, uniform vulcanization
without defects);
- Debiao
- ezhou
- 100000 MT
- Information
db-pb-hf-series-flat-vulcanizing-machine
Wide range pressure adaptation for all materials (0.8-24MPa covering rubber/silicone and other full material systems to meet complex processes); Precise temperature control to eliminate defects (PID temperature control+imported heating plate, temperature fluctuation ≤ ± 1 ℃, uniform vulcanization without defects);
Full process automation improves efficiency by 30% (PLC one click start, multi-level pressure/exhaust times can be freely set, efficiency increases by 30%); Rapid mold change adaptation for multiple varieties (modular design+servo hydraulic, mold change time reduced by 50%, worry free production of multiple varieties in small batches); Pressure compensation qualification rate (when the oil pump is shut down to maintain pressure and avoid edge shrinkage/missing glue, the qualification rate is ≥ 99%);
High precision positioning and stable size (four column three plate beam structure, repeated positioning accuracy ± 0.01mm, excellent dimensional stability)+Energy saving 35%+Electricity saving (servo hydraulic on-demand oil supply, no overflow loss, annual electricity saving tens of thousands of yuan) Low maintenance and cost reduction (key components have a lifespan of over 10 years, reducing downtime for maintenance);
ouble protection ensures safety (high-sensitivity grating+dual hand buttons, emergency braking<0.1 seconds, in compliance with CE/ISO standards), mechanical limit zero risk (mechanical and servo combination, anti overpressure/overheating, zero operation risk)
Suitable Product
Technical Parameter
| Project | Unit | Parameter |
|---|---|---|
| Model | 100HF 160HF 200HF 250HF 300HF 400HF 500HF 1200HF | |
| Mold Opening Type | 2RT-3RT-4RT 轨道-悬挂式 (2RT-3RT-4RT Track - Suspension) | |
| Clamp Force | 吨 (ton) | 100 160 200 250 300 400 500 1200 |
| Platen Size | mm | 400×460 500×520 550×560 650×600 700×800 850×850 1000×1000 1600×2200 |
| Plunger Stroke | mm | 200 250 250 250 300 300 350 350 |
| Max. Operating Pressure | MPa | 20 20 20 20 20 20 20 20 |
| Motor Capacity | HP (KW) | 7.5×2 (5.5KW×2) 10×2 (7.5KW×2) 10×2 (7.5KW×2) 10×2 (7.5KW×2) 10×2 (7.5KW×2) 15×2 (11KW×2) 15 (11KW) 25 (18.5KW) |
| Heater Capacity | KW | 7.2×2 11.7×2 13.5×2 15.3×2 24×2 26.4×2 36 126 |
| Total Capacity | KW | 25.4 38.4 42 45.6 63 74.8 47 144.5 |
| Gross Weight | (ton) | 5 6 7.8 11 15 17 13.5 28.5 |
| <br>Machine Dimensions (L×W×H) | mm | 2500×2050×950 2800×2260×1900 2930×2350×2050 3190×2760×2230 3360×2970×2250 3660×3050×2350 1460×3600×2380 2350×5400×2850 |
