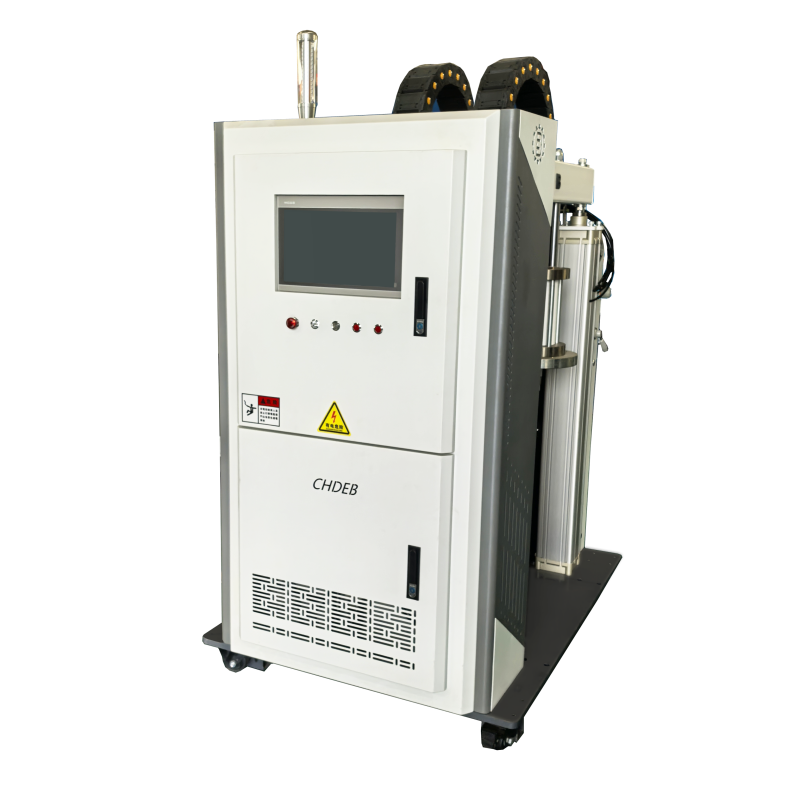

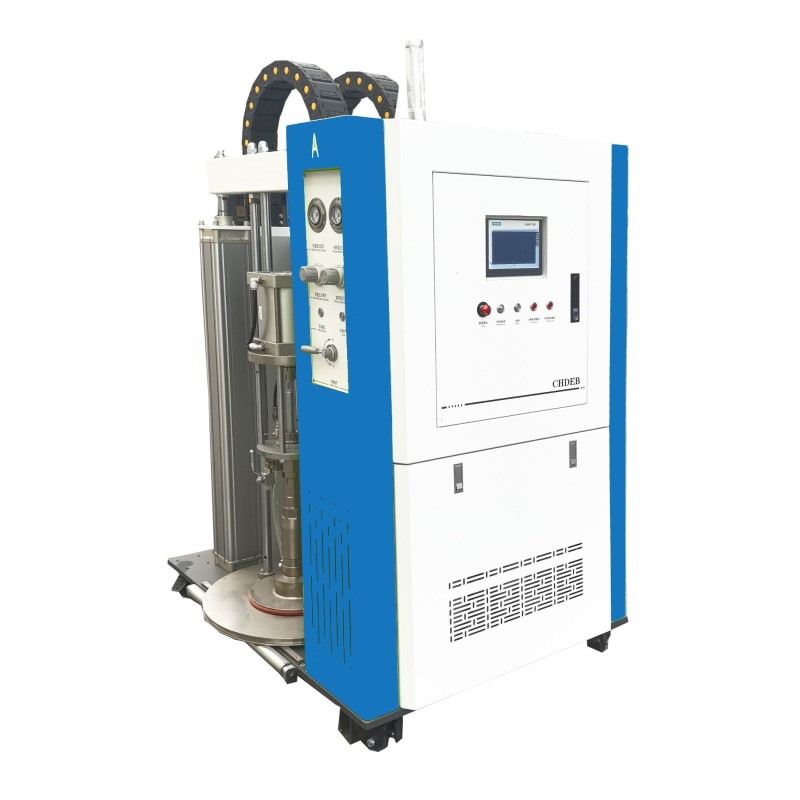

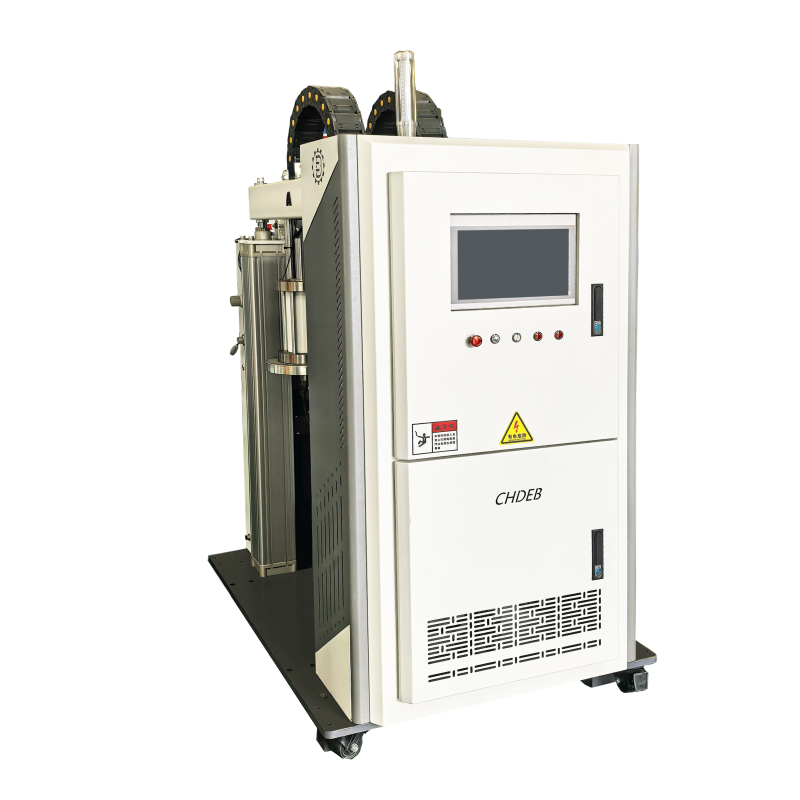

DB online feeding series high-precision hydraulic pneumatic series synchronous cylinder feeding machine
DB online feeding series high-precision hydraulic pneumatic series synchronous cylinder feeding machine
Synchronous multi-feeding control, seamless production line integration. High-precision feeding for diverse materials. Real-time pressure/flow monitoring. Easy maintenance & energy-saving design.
- Debiao
- ezhou
- 4-7 DAYS
- 100000 MT
- Information
DB online feeding series high-precision hydraulic pneumatic series synchronous cylinder feeding machine
1. Synchronous Control: Multiple feeding units are synchronized via tandem synchronous cylinders, ensuring coordinated and consistent feeding.
2. Online Operation: Integrates with other production line equipment for automated workflows, enhancing efficiency.
3. High-Precision Feeding: Offers precise material metering and conveying, ideal for processes requiring high feeding accuracy.
4. Strong Adaptability: Accommodates various materials and production needs with a wide application range.
5. Real-Time Monitoring: Monitors parameters like pressure and flow in real-time to ensure stable production and quality.
6. Easy Maintenance: Designed for easy daily maintenance, reducing downtime and costs.
7. Energy Efficiency: Optimized feeding and control technologies improve energy utilization and lower costs.

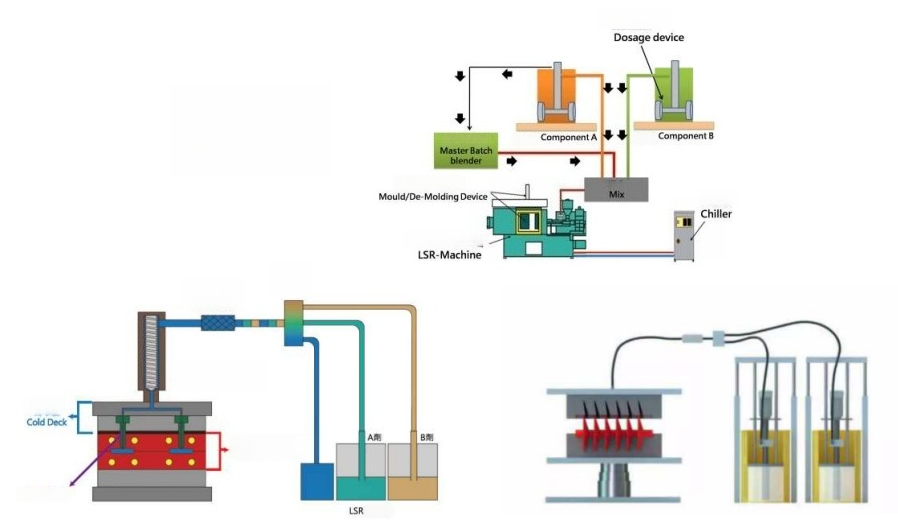

Application Scenarios
Technical Parameter
| Project | Unit | Y1026（ Hydraulic） | Q1026（ Pneumatic） |
|---|---|---|---|
| Injection Rate | g/s | 25 | 25 |
| Maximum Glue Output (A+B) | g/min | 1500 | 1500 |
| Disk Cylinder Stroke | mm | 1100 | 1100 |
| Pumping Stroke | mm | 90 | 90 |
| Cylinder Diameter | mm | Φ80 | Φ160 |
| Large Raw Material Barrel Size | mm | 570 | 570 |
| Small Raw Material Barrel Size | mm | 280 | 280 |
| Maximum Feeding Pressure (Hydraulic) | MPa | 30 | 30 |
| Mixed Ratio | Column | A:B = 1:1 | A:B = 1:1 |
| Maximum Feeding Pressure | MPa | 36 | 20 |
| Using Voltage | V | 380V | 220V |
| Size of A & B Material Pipes | mm | A: φ19，B: φ19 | A: φ19，B: φ19 |
| Minimum Air Pressure | kgf/cm² | 4 | 4 |
| Equipment Size | mm | 980 × 1520 × 1750 | 980 × 1520 × 1750 |
