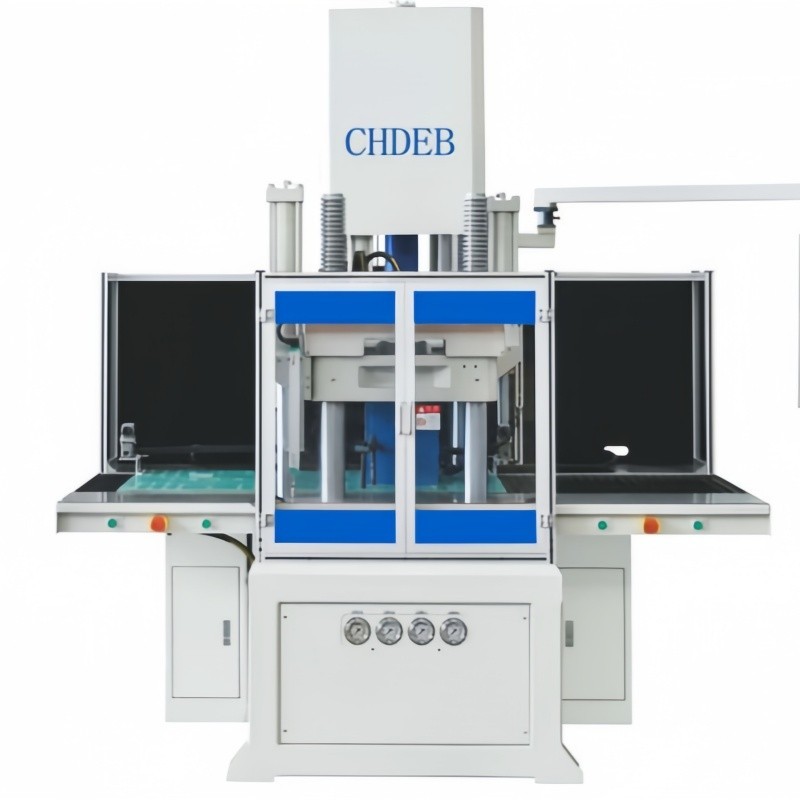

DB LS2R series vertical double slide liquid silicone injection machine
DBLS2R series vertical double slide liquid silicone injection machine
Low-profile design ensures stable operation with minimal vibration, enhancing molding precision & quality consistency. Advanced injection technology delivers fast cycle times for high-volume production to meet market demands.
- Debiao
- ezhou
- 4-7 DAYS
- 100000 MT
- Information
DBLS2R series vertical double slide liquid silicone injection machine
01. Due to the low body design, stable center of gravity, and minimal vibration during operation, the smooth production process is ensured, which is beneficial for improving the forming accuracy and quality stability of the product.
02. Advanced injection molding machines provide fast cycle times, enabling the completion of a production cycle in a relatively short amount of time, thereby achieving mass production and meeting market demand.
03. Capable of producing high-precision and consistent silicone parts with extremely precise processes, allowing manufacturers to produce complex shapes and intricate details with strict tolerances.
04. The body is low and easy for operators to operate and monitor, while the feeding is convenient and the maintenance is easy.
05. Liquid silicone injection molding is highly efficient in material use, generating minimal waste. Excess materials can usually be recycled and reused, contributing to sustainable manufacturing practices.
06.Widely used in industries such as medical, food, infant and toddler products, diving equipment, electrical insulation accessories, and cable accessories.

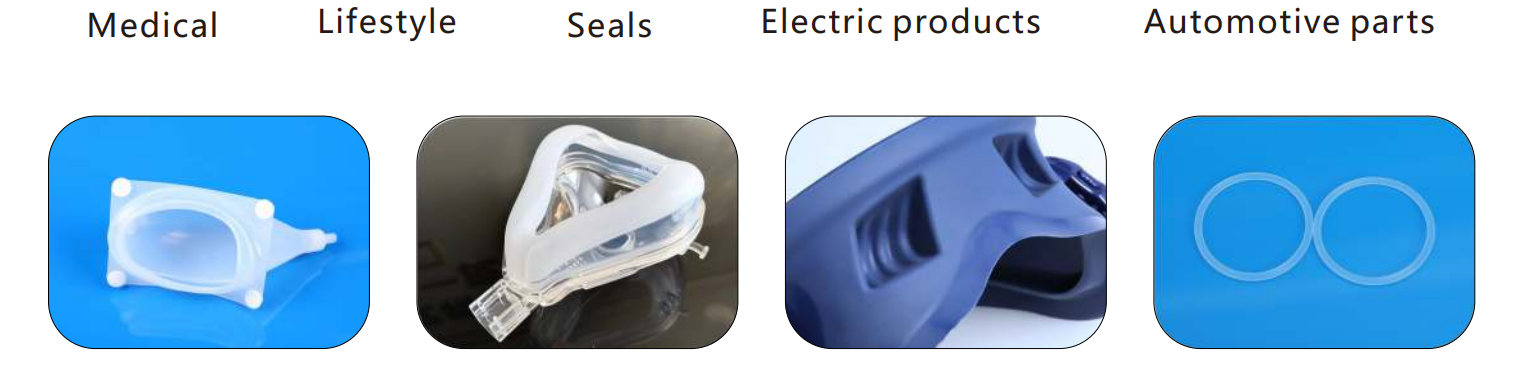

Suitable Product
Technical Parameter
DESCRIPTION | DB-40-2S | DB-60-2S | DB-80-2S | DB-100-2S | DB-120-2S | DB-150-2S | DB-200-2S | ||
Injection System | |||||||||
Screw Diameter | mm | Φ30 Φ35 | Φ35 Φ40 | Φ40 Φ45 | Φ45 Φ50 | Φ45 Φ50 | Φ50 Φ55 | Φ55 Φ60 | |
Injection Pressure | kgf/cm² | 1570 1138 | 1385 1064 | 1371 1083 | 1347 1093 | 1347 1093 | 1435 1187 | 1187 996 | |
Theoretical shot volume | cm³ | 112 153 | 173 226 | 251 318 | 318 392 | 350 431 | 431 521 | 521 620 | |
Injection rate | cm³/sec | 31 42 | 74 93 | 76 94 | 103 127 | 127 153 | 153 182 | ||
Clamping System | |||||||||
Clamping force | ton | 40 | 60 | 80 | 100 | 120 | 150 | 200 | |
Top platen size | mm | 580*580 | 650*650 | 710*710 | 780*780 | 850*850 | 920*920 | 990*990 | |
Slide Table Size | mm | 1020*370 | 1180*430 | 1320*500 | 1460*550 | 1580*590 | 1720*660 | 1860*690 | |
Slide stroke | mm | 460 | 520 | 600 | 710 | 780 | 840 | 900 | |
Mould size | mm | 440*300或370*300 | 580*310或520*430 | 650*370或550*500 | 720*430或550*650 | 780*500或590*700 | 850*560或660*750 | 920*640或690*780 | |
Min. Mold | mm | 140 | 160 | 180 | 200 | 220 | 240 | 260 | |
Opening stroke | mm | 220 | 260 | 280 | 300 | 310 | 320 | 320 | |
open Daylight | mm | 360/480 | 420/540 | 460/580 | 500/620 | 530/650 | 560/680 | 580/700 | |
Ejector force | ton | 2.6 | 2.6 | 3 | 3 | 4 | 4 | 4 | |
Ejector Stroke | mm | 65 | 70 | 85 | 100 | 115 | 130 | 150 | |
Other | |||||||||
Maximum system pressure | kg/cm² | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
Fuel tank capacity | L | 160 | 180 | 216 | 216 | 380 | 380 | 380 | |
Motor horsepower | kw | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 | 11 | |
Di mention Of Machine | m | 2. 1*1.2*2.6 | 2.4*1. 3*2.9 | 2.6*1.4*3.1 | 2.6*1. 5*3. 1 | 2.7*1.6*3.2 | 2.8*1.7*3.2 | 3*1.9*3.3 | |
Weight | ton | 2.4 | 3.3 | 4.1 | 4.9 | 6 | 7.7 | 9.5 | |

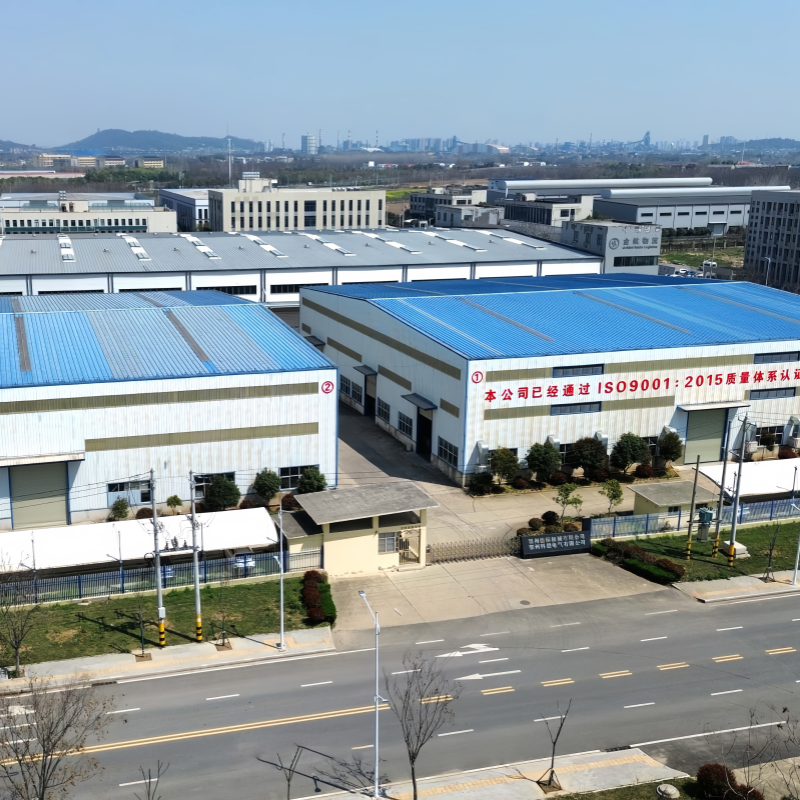

Established in 2013, Ezhou Debiao Machinery Co., Ltd. is a professional manufacturer specializing in the design and manufacture of liquid silicone injection molding machinery. The company invested 40 million yuan in 2014 to build its own factory building, with a usable area of 30 acres, 2 modern standardized workshops, and more than 20 core patented technologies; The company is located in the central area of the Dongcheng City cluster, in Ezhou, adjacent to Wuhan, the "thoroughfare of nine provinces" to the west, Huangshi, the "city of mining and metallurgy" to the east, Huanggang to the north, and Xianning to the south, with a unique geographical location and convenient and fast transportation.
