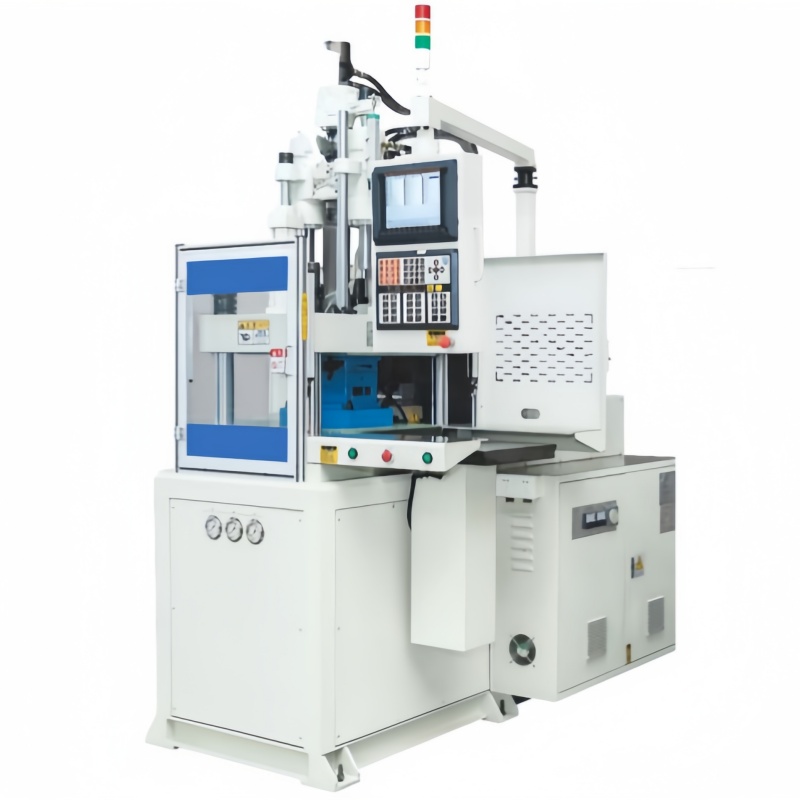

DB LS 1R series vertical single slide liquid silicone injection machine

DB LS 1R series vertical single slide liquid silicone injection machine
Precision injection control for stable quality. Robotic automation boosts efficiency. Flawless silicone surface finish. Vertical design ensures safety. Servo system saves energy. Scalable for prototyping to mass production.

Brand: Debiao
Product origin: ezhou
Delivery time: 4-7 DAYS
Supply capacity: 100000 MT

Information

01. Equipped with a high-precision injection control system, it can accurately control parameters such as injection speed and pressure, ensuring stable injection volume and speed of liquid silicone gel, thereby ensuring consistency and stability of product quality.

02. It can be paired with a robotic arm to achieve fully automated production, reducing manual operations, improving production efficiency and product consistency, and reducing production costs.

03. Injection molded silicone products have a smooth surface, no bubbles, no flow patterns, no color differences, and excellent appearance quality.

04. The vertical design eliminates the need for complex actions by operators when picking up and placing products, reducing operational risk s and improving production safety.

05. Optional servo system can be equipped to achieve energy-saving, precise, and fast control effects, further reducing energy consumption.

06. It is suitable for both small-scale production or prototype making, as well as large-scale production, and can meet the needs of different production scales.

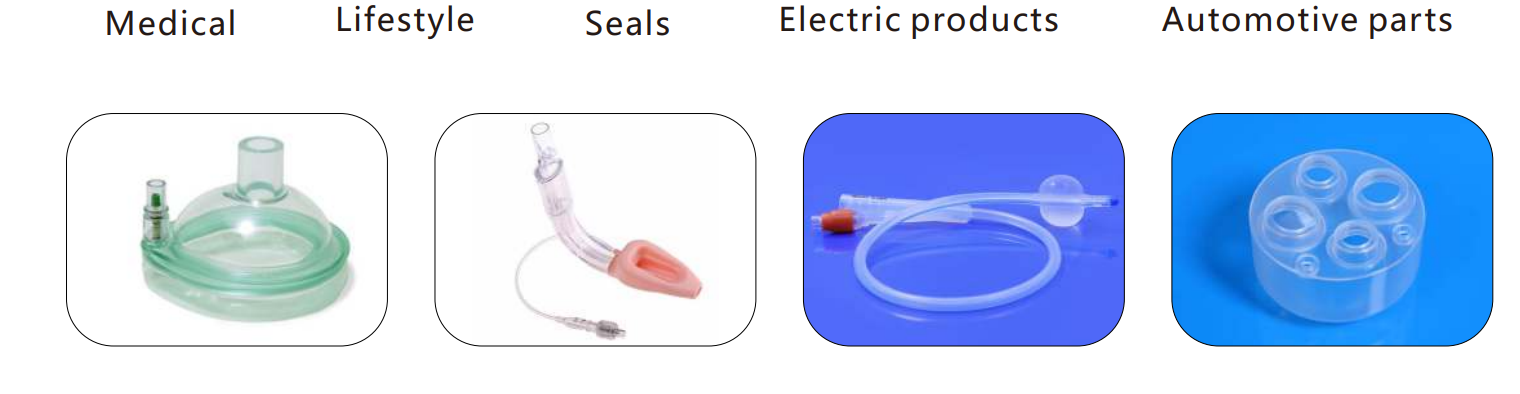

Suitable Product

Technical Parameter

DESCRIPTION		DB-40-1S	DB-60-1S	DB-80-1S	DB-100-1S	DB-120-1S	DB-150-1S	DB-200-1S
Injection System
Screw Diameter	mm	Φ30 Φ35	Φ35 Φ40	Φ40 Φ45	Φ45 Φ50	Φ45 Φ50	Φ50 Φ55	Φ55 Φ60
Injection Pressure	kgf/cm²	S78/1570 S78/1570	S95/1385 S95/1064	S 123/1371 S 123/1083	S 153/1347 S 153/1093	S 153/1347 S 153/1093	S201/1435 S201/1187	S201/1187 S201/996
Theoretical shot volume	cm³	L160/112 L160/112	L 180/173 L 180/226	L200/251 L200/318	L200/318 L200/392	L220/350 L220/431	L220/431 L220/521	L220/521 L220/620
Injection rate	cm³/sec	31 42	51 66	74 93	76 94	103 127	127 153	153 182
Clamping System
Clamping force	ton	40	60	80	100	120	150	200
Top platen size	mm	580*580	650*650	710*710	780*780	850*850	920*920	990*990
Slide Table Size	mm	510*370	580*430	650*500	720*550	780*590	850*660	920*690
Slide stroke	mm	460	520	600	710	780	840	900
Mould size	mm	440300 370300	580310520430	650370 550500	720430 550650	780500 590700	850560 660750	920640 690780
Min. Mold	mm	140	160	180	200	220	240	260
Opening stroke	mm	220	260	280	300	310	320	320
open Daylight	mm	360/480	420/540	460/580	500/620	530/650	560/680	580/700
Ejector force	ton	2.6	2.6	3	3	4	4	4
Ejector Stroke	mm	65	70	85	100	115	130	150
Other
Maximum system pressure	kg/cm²	140	140	140	140	140	140	140
Fuel tank capacity	L	160	180	216	216	380	380	380
Motor horsepower	kw	4	5.5	7.5	7.5	11	11	11
Di mention Of Machine	m	1.80.82.6	2.112.9	2.251.13.1	2.41.23.1	2. 51. 33.2	2.61. 53.2	2.71.63.3

Weight ton 2.2 3.1 3.8 4.6 5.8 7.5 9.2

Liquid silicone injection molding

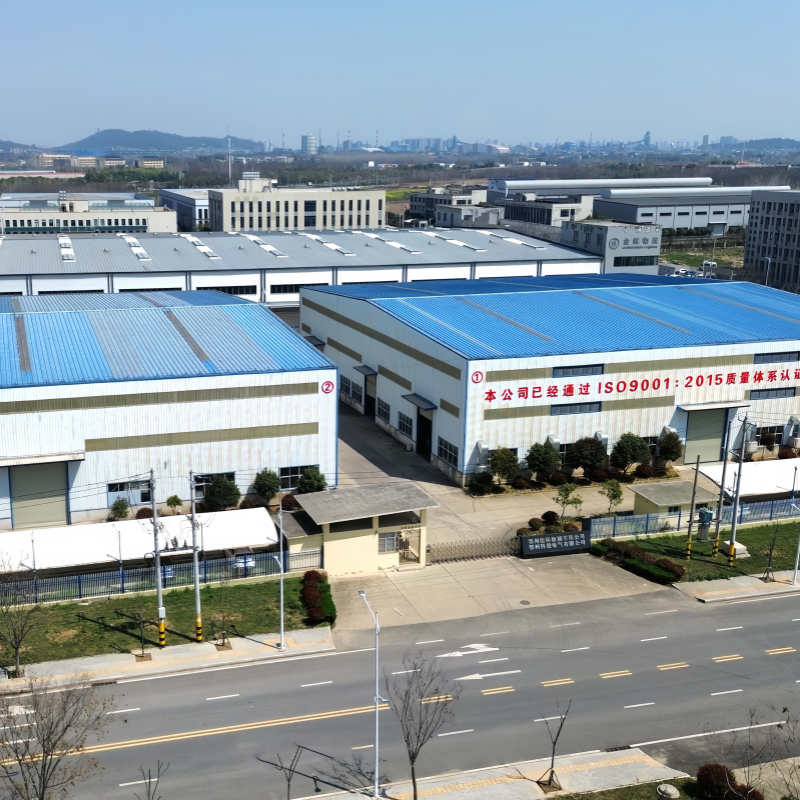

Established in 2013, Ezhou Debiao Machinery Co., Ltd. is a professional manufacturer specializing in the design and manufacture of liquid silicone injection molding machinery. The company invested 40 million yuan in 2014 to build its own factory building, with a usable area of 30 acres, 2 modern standardized workshops, and more than 20 core patented technologies; The company is located in the central area of the Dongcheng City cluster, in Ezhou, adjacent to Wuhan, the "thoroughfare of nine provinces" to the west, Huangshi, the "city of mining and metallurgy" to the east, Huanggang to the north, and Xianning to the south, with a unique geographical location and convenient and fast transportation.

Business philosophy

Adhering to the development concept of "integrity, win-win and long-term survival", Ezhou Debiao Machinery Co., Ltd. not only integrates the world's advanced science and technology into the innovative elements, but also wins customer recognition with excellent quality, perfect structure, and sincere service. Its products are sold all over Chinese Mainland, Southeast Asia, the Middle East and other major industrial countries.

Quality standards

Debiao Machinery has strong product design and development capabilities, and has been conducting extensive exchanges and cooperation with various mechanical industry manufacturers for many years. With a customer-oriented approach and in line with global energy conservation and environmental protection requirements, it strengthens the research and development of liquid silicone rubber injection molding machine products, and promotes all products towards energy-saving, high-efficiency, automation, and network informationization series.

Strong Strength

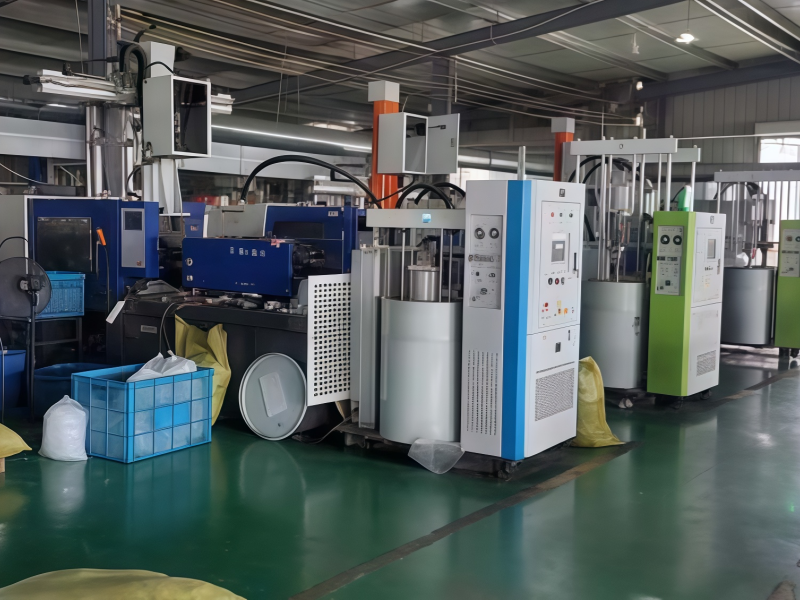

The company has a wide range of liquid silicone rubber injection molding equipment models, including horizontal liquid silicone rubber injection molding machines, vertical silicone rubber injection molding machines, and liquid silicone rubber feeding machines. It is also widely used in industries such as medical, food, infant and toddler products, electronic hardware products, and daily necessities. It is currently one of the large-scale production bases for liquid silicone rubber injection molding equipment in China.

High quality service

Debiao Machinery innovates and develops various special energy-saving models, absorbing the strengths of hundreds of companies to meet the professional needs of customers for different products. We adhere to being the most trusted partner for customers and provide them with a wider range of professional services. Adhering to the concept of "integrity-based, customer first", we adhere to a high-quality and low-cost business strategy, and have formed a complete set of high-quality and efficient operation systems from production to after-sales service.
